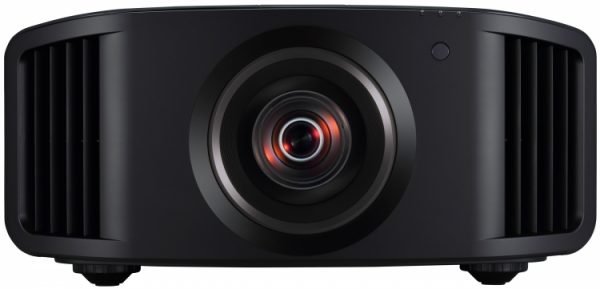

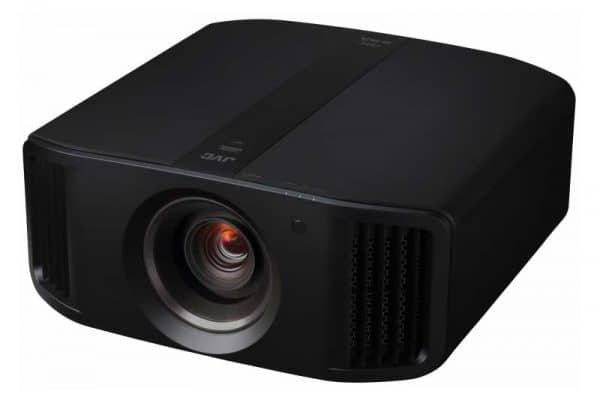

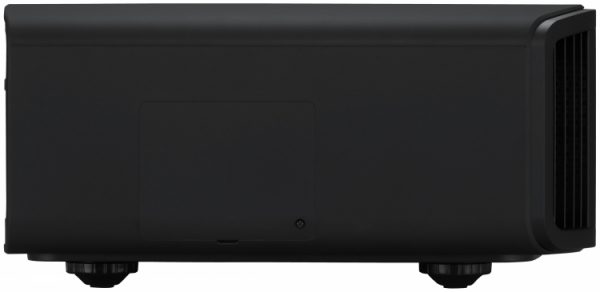

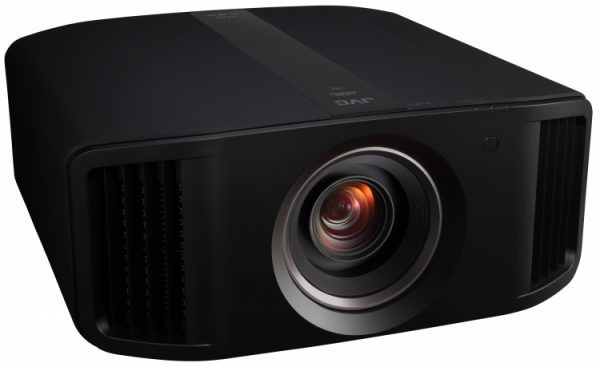

JVC DLA-NX5B Home Theatre Projector

JVC DLA-NX5 D-ILA projector is wrapped in a whole new design, which is packed with the latest projection features. For instance with the new 0.69-inch native 4K D-ILA device, the projector can produce high-definition native 4K resolution (4096 x 2160) images from its all-glass 65 mm diameter lens system. HDR10 content can be projected at optimum quality with Auto Tone Mapping function, which automatically adjusts settings based on the mastering information. Combining brightness of 1,800 lm with dynamic contrast ratio of 400,000:1, the projector reproduces life like images for latest contents like HDR10 and Hybrid Log Gamma. Original motion control technology Clear Motion Drive is renewed, and together with Motion Enhance which optimizes the driving of D-ILA device according to the motion of the image, motion blur is reduced significantly compared to conventional projectors.
Description
Features
- Complies with the latest HDMI/HDCP 2.2 standard to enable full spec 4K signal input with 18Gbps transmission band-width (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)
- Light source: NSH 265 W lamp
- Resolution: 4096 x 2160
- Input connectors: HDMI x 2 (3D, Deep Color/HDCP 2.2)

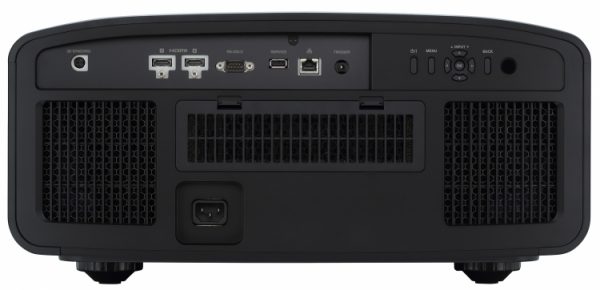

- Output and control connectors: RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini-DIN 3pin)
- 3D formats: Frame Packing, Side-by-Side (Half), and Top and Bottom
- Device
- 0.69-inch Native 4K DILA Device (4096×2160) x3
- Resolution
- 4096 x 2160
- Lens shift function
- +/-80% vertical & +/-34% horizontal, motorized in 16:9 aspect mode
- Light source lamp
- NSH 265 W
- Lamp life
- Approx. 4500 hours in Low mode
- Brightness
- 1,800 lm
- Contrast Ratio
- Native: 40,000:1, Dynamic: 400,000:1
- Video format
- Digital: 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24, 3840 x 2160p 60/50/30/25/24, 4096 x 2160p 60/50/30/25/24
- PC input signal
- HDMI
- VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+
- Control terminals
- LAN
- 1 (RJ-45)
- RS232C
- 1 (D-sub 9-pin)
- Service terminal
- SERVICE
- 1 (USB Type A) (for firmware update)
General
- Power requirement
- AC100V-240V, 50/60Hz
- Dimensions: W x H x D, mm
- 500 x 234 x 495
- Dimensions: W x H x D, inches
- 19-3/4 x 9-1/4 x 19-1/2
- Weight, kg
- 19.6
- Weight, lbs
- 43.12
